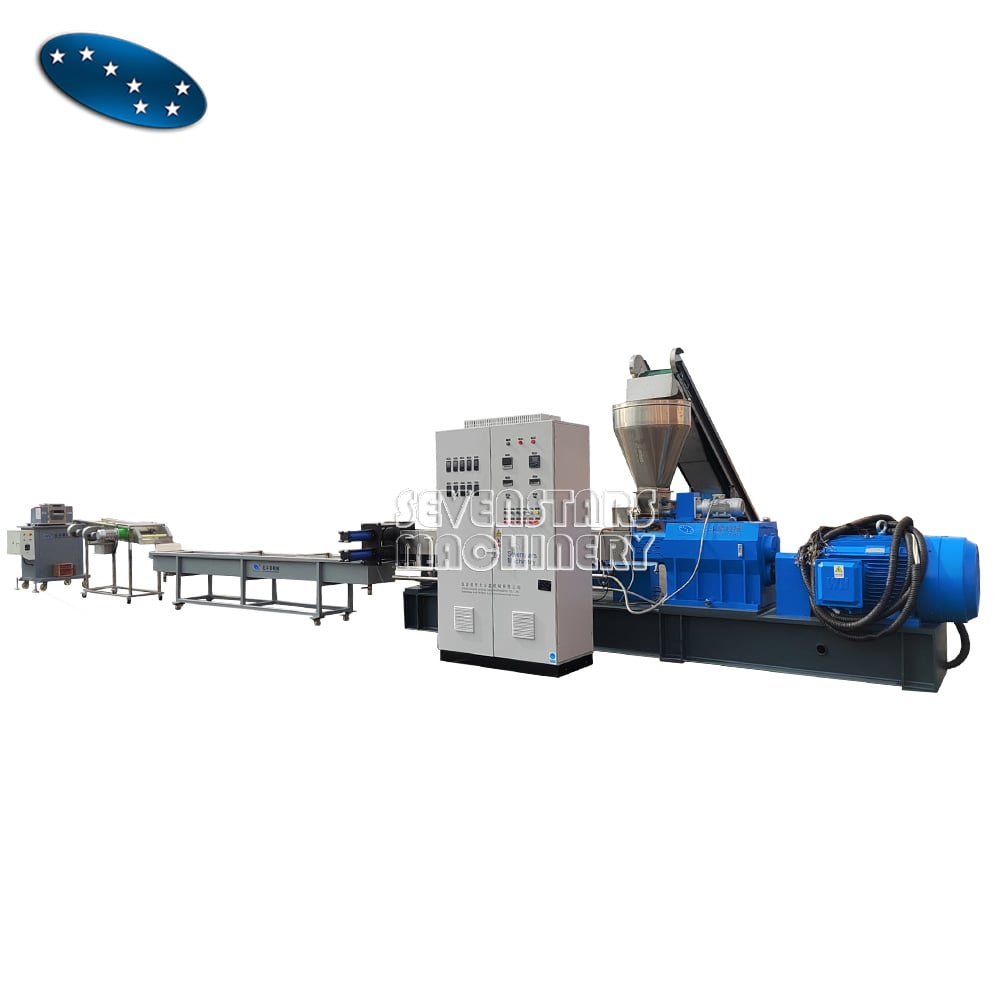

PET fish net recycling pelletizing machine
Plastic pelletizing granulator machine is used to recycle various kinds of plastic products and make plastic into granules to recover the plastic and suit for making products again.
The the strands go into the pelletizer automatically by the water flow, even the strands break during changing the filter. so there will be almost no waste during the manufacturing process. If the strand number more than 25 pieces (the output about 80okg/h),it will be more difficult for operator to handle the hot strand to pelletizer manually.
The component characteristics of the water granulation production line are mainly reflected in the high efficiency of cutting components, the cooling and shaping effect of the water circulation system, the convenience of the automation control system, the durability of wear-resistant components, and the energy-saving measures of thermal insulation.
The water granulation production line has the characteristics of high efficiency, environmental protection, adjustable particle size, low noise, simple operation, and wide applicability. With the continuous innovation and development of technology, water granulation production lines will be applied in more fields.
Detailed Images
Application
Specification
| Model |
Screw Diameter |
Screw L/D |
Second Screw L/D |
Main Motor Power |
Capacity |
| SHJ85 |
85mm |
28-33:1 |
10-12:1 |
55KW |
150-200kg/hr |
| SHJ100 |
100mm |
28-33:1 |
10-12:1 |
75KW |
200-300kg/hr |
| SHJ130 |
130mm |
28-33:1 |
10-12:1 |
90KW |
300-400kg/hr |
| SHJ150 |
150mm |
28-33:1 |
10-12:1 |
110KW |
400-500kg/hr |
