Single Shaft Shredder
Adopted advanced technologies, this kind of machine can be used for shredding waste plastic products, plastic film, rubberproducts, wove bag, fiber, paper, wood and some parts of electrical equipments. Such as wasted junks in the die, large plasticpipe, packing buckets and splints of the fork lift truck. The customer can choose the satisfied model according to the size of thewaste products and the capacity you want to get. Electrical The machine is controlled by PLC system, the blade can be rotated in opposite direction, and also will close automatically if something unexpected happen, with very high safety service However, if you want to crush the rigid material, such as nylon, ABS, PC high-strength engineering plastic
Specification
| Model |
WT600 |
WT800 |
WT1000 |
WT1200 |
WT1400 |
| Rotor Diameter |
230mm |
230 |
380 |
380 |
430 |
| Main shaft speed |
83r/min |
83 |
83 |
83 |
83 |
| Screen Mesh |
40mm |
40 |
40 |
40 |
40 |
| Rotor-Knives |
26pcs |
34 |
46 |
58 |
70 |
| Stator-Knives |
4pcs |
4 |
4 |
4 |
6 |
| Main Motor Power |
15kw |
30 |
37 |
45 |
55 |
| Capacity |
300kg/h |
500 |
700 |
900 |
1000 |

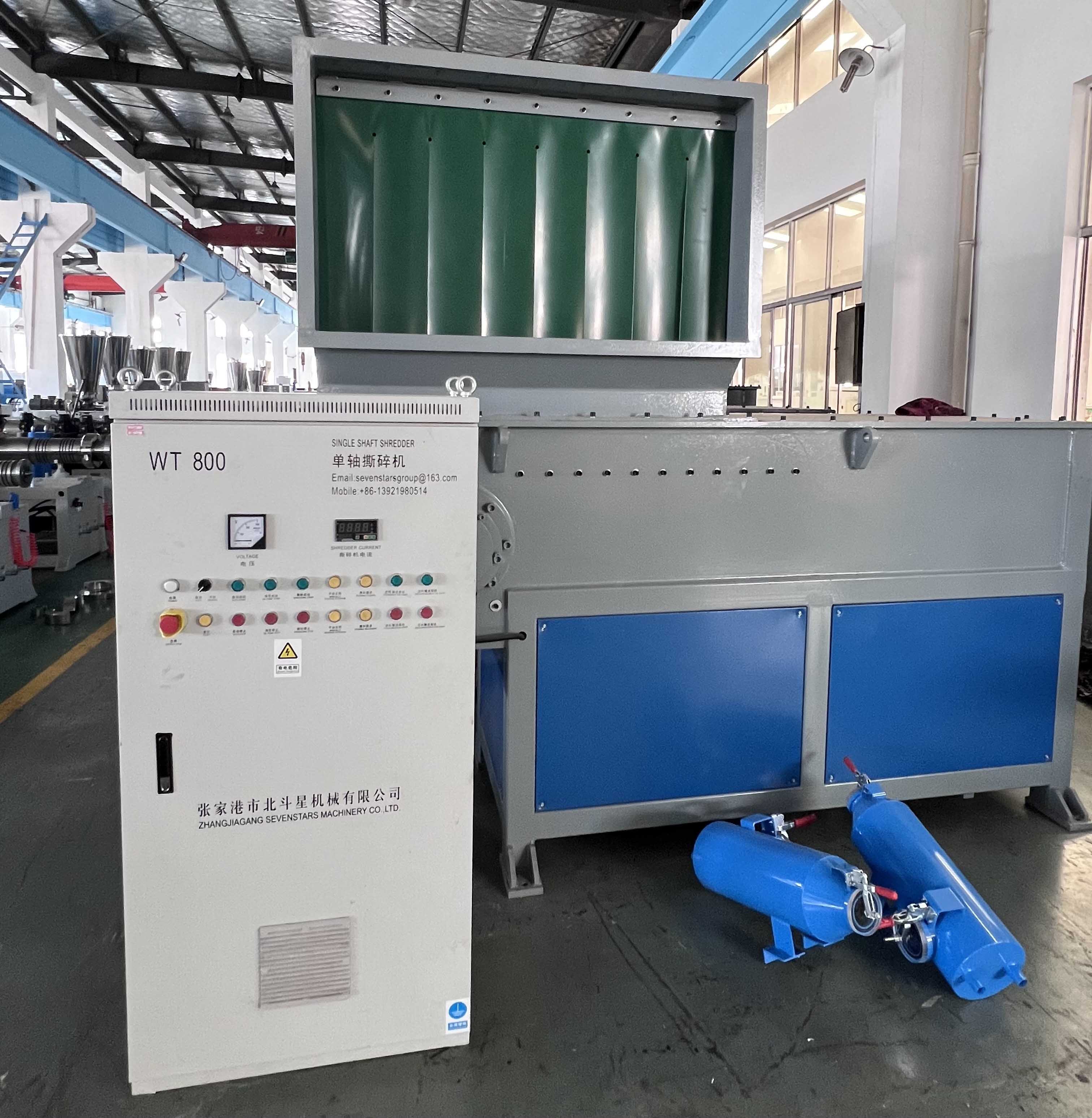

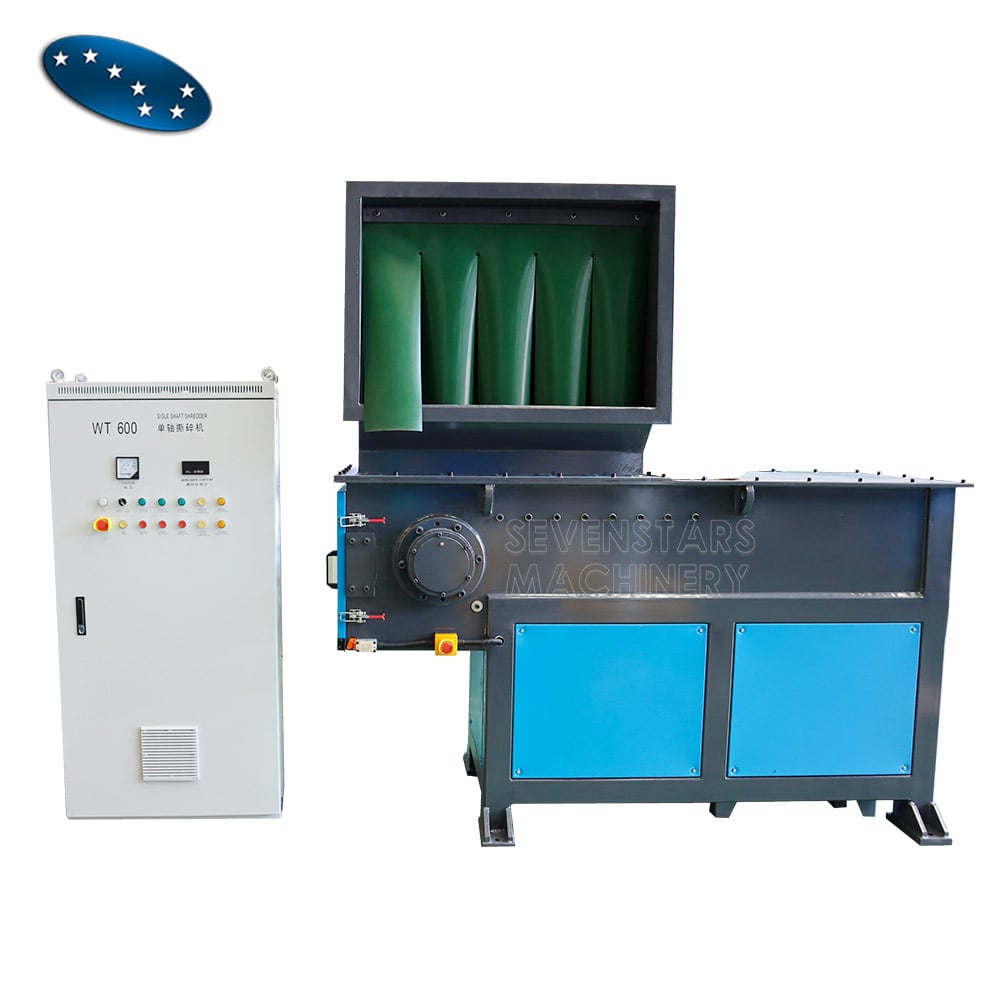

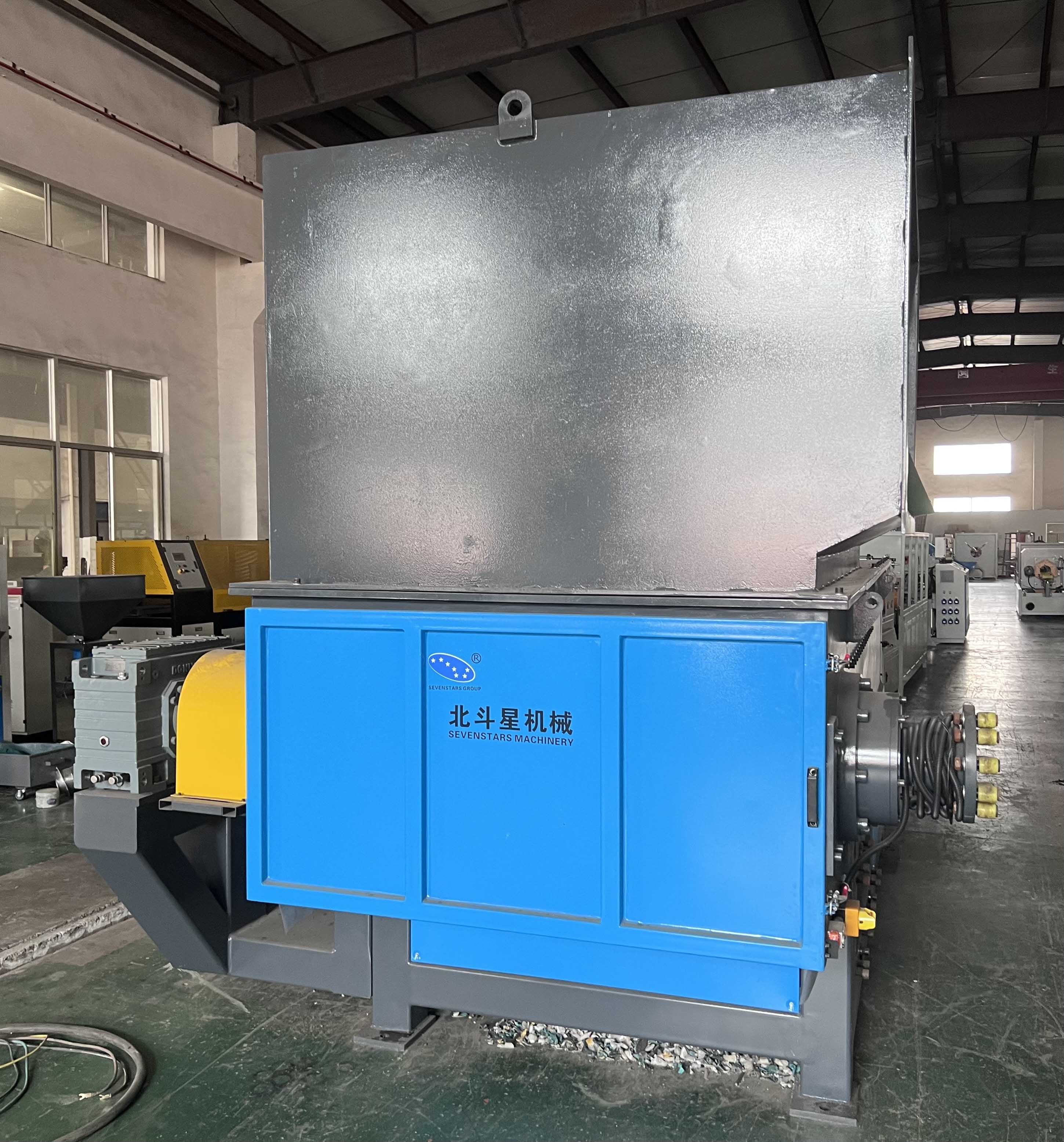

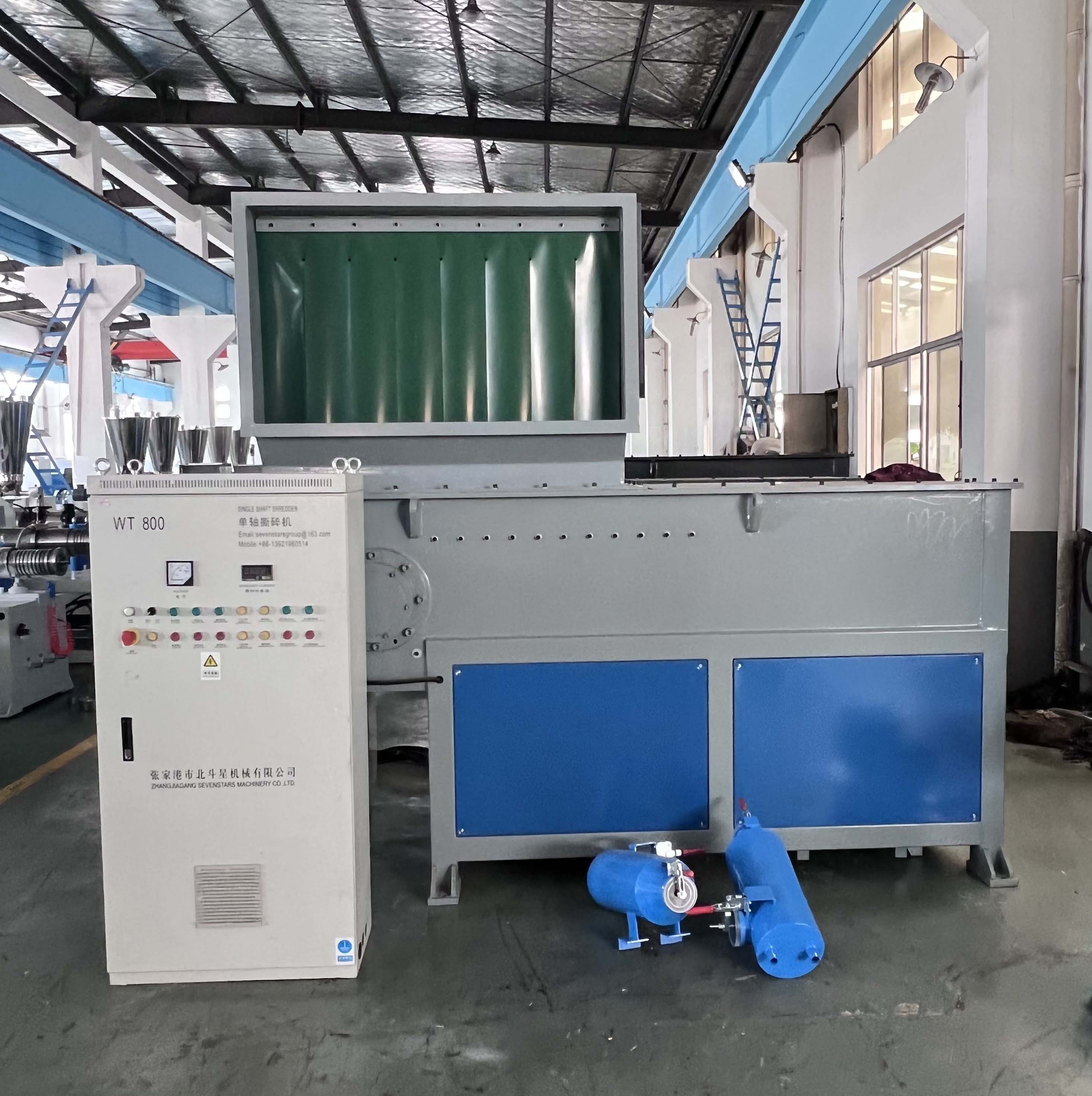

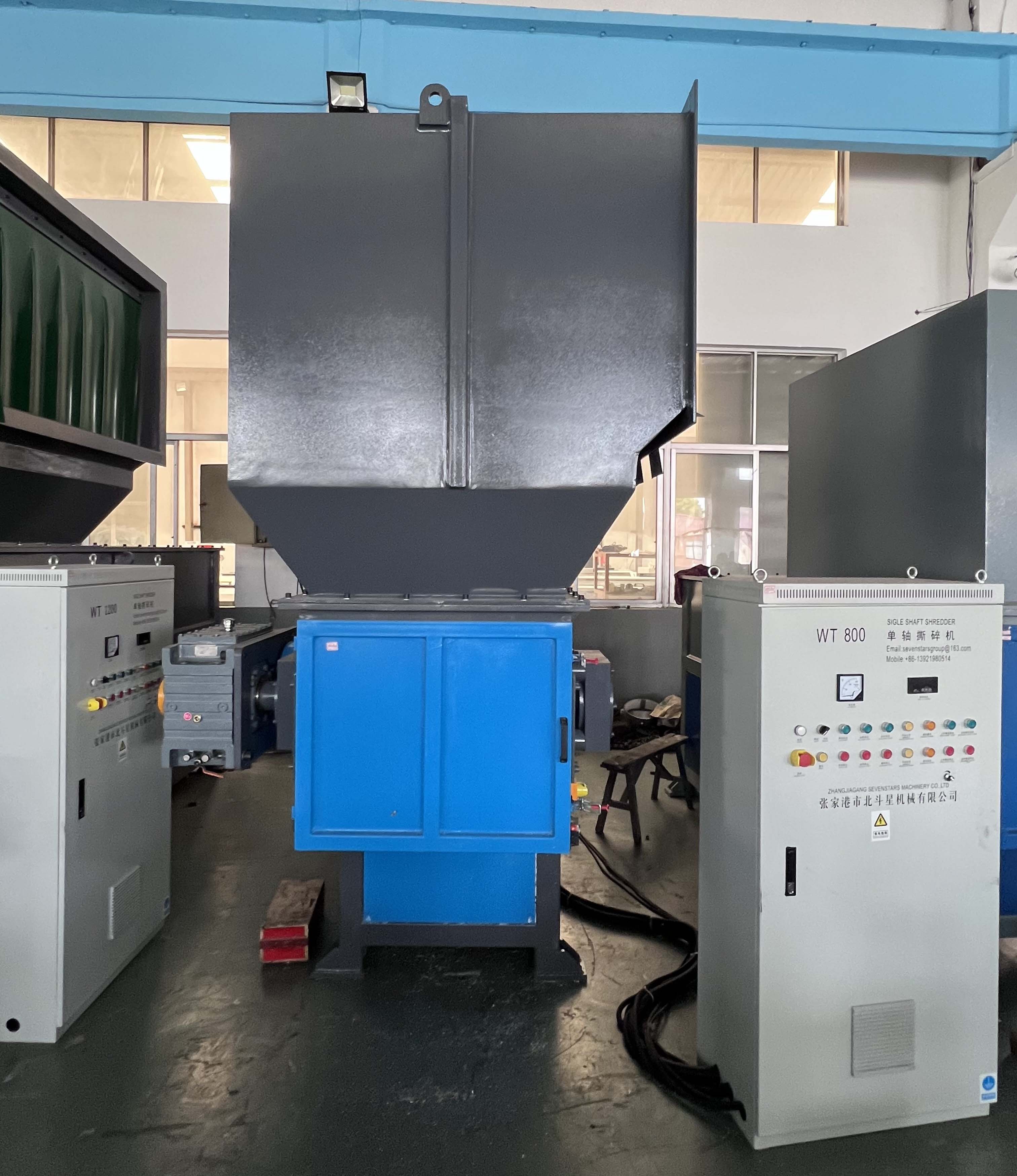

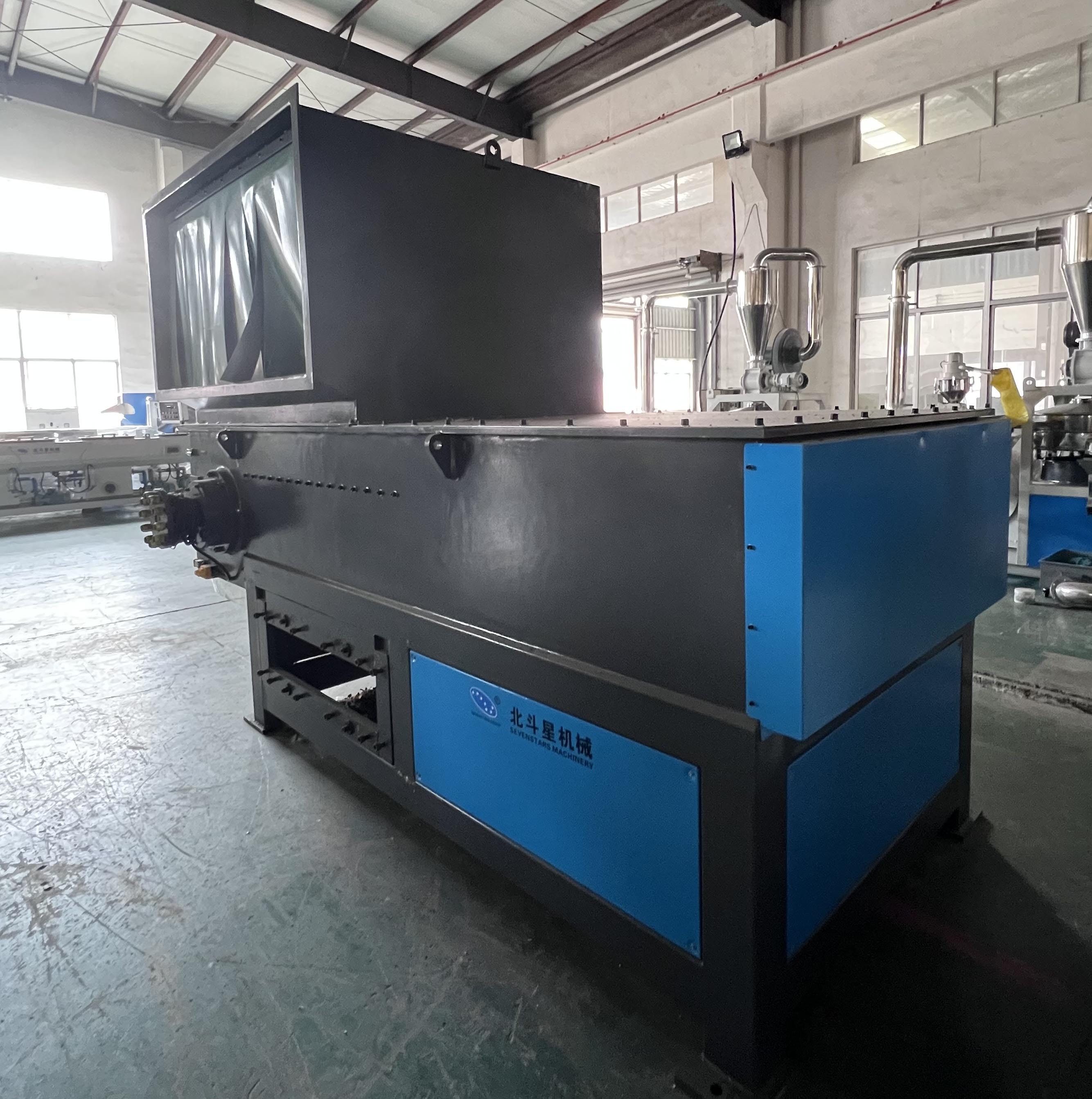

Detailed Images
