Pulverizer Machine

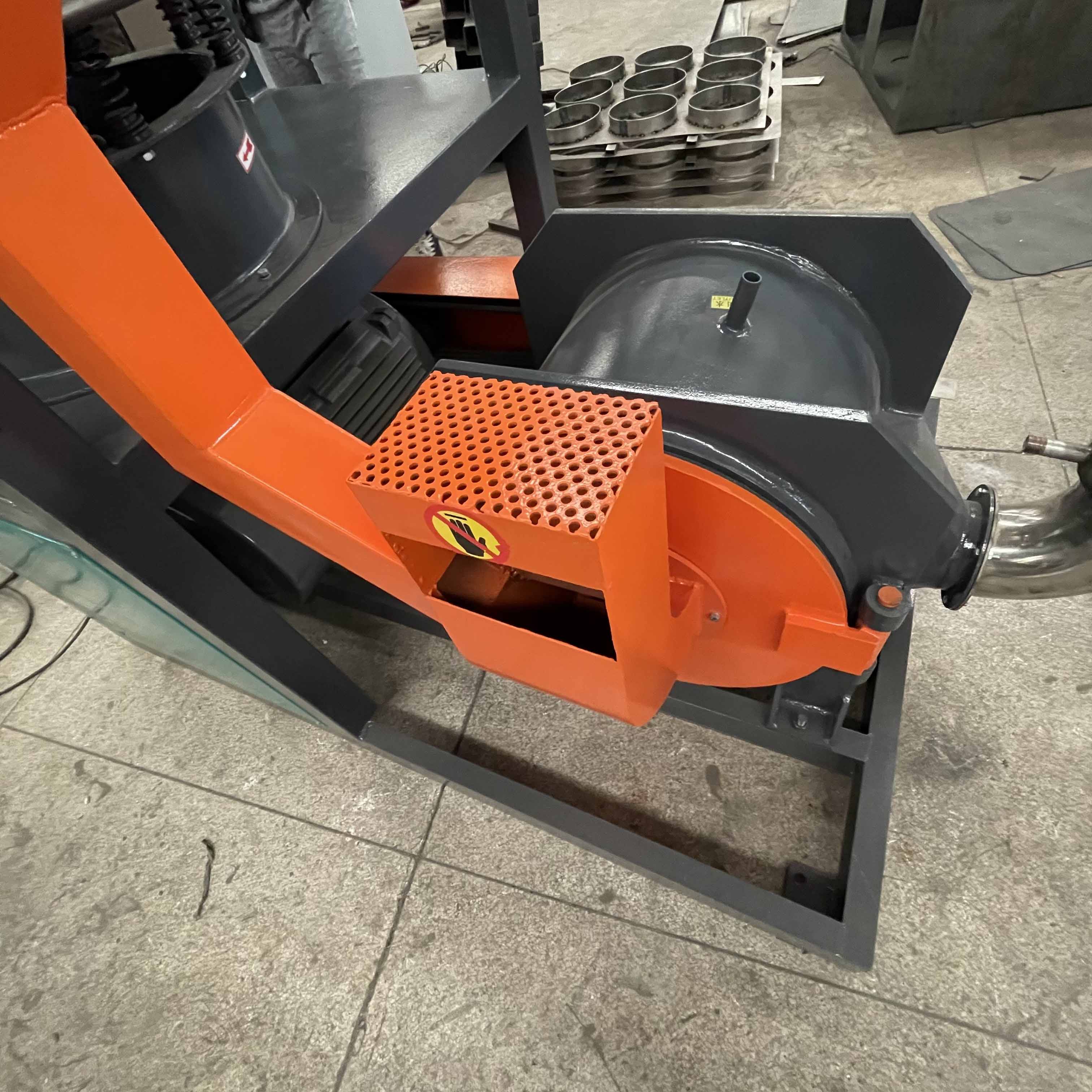

The material would be conveyed by the feeding device into milling chamber evenly, and be impacted by high speed rotor. The rotor consists of several sections of discs and several blades. Material would be sheared, impacted and rubbed into powder
Qualified fine powder would go with air flow into product collector, while coarse powder would go back to milling chamber for further milling
Performance Features
1. When the rotation speed of rotor is fixed, it can mill various material of Moh’s hardness < 2~3, especially for organic product processing and special material milling.
2.  It can connect with heater which can do the drying during milling process; it can connect with cooler to do milling under low temperature, for the milling of heat sensitive material.
3. Rotor has vertical shaft. Product size can be adjusted by the change of classifying pin quantity.
4. It can create different milling power by the adjustment of rotor speed or the change of different rotors. Wide application.
5. Design for quick disassembly and maintenance. Convenient maintenance, easy operation and cleaning

Specification

Item Model	MF400	MF500	MF600	MF800
Diameter	400mm	500mm	600mm	800mm
Motor power	30kw	45kw	55kw	75kw
Blade material	SKD-11 or D53	SKD-11 or D53	SKD-11 or D53	SKD-11 or D53
Capacity	100kg/h	200kg/h	250kg/h	350kg/h
